中茂 Chroma 平面顯示器測試解決方案
2015-08-13
中茂 Chroma 平面顯示器測試解決方案于組立段可先以Shorting-bar訊號來檢測面板的各種瑕疵并進行雷射修補，進入模塊制程后則根據不同的面板尺寸及背光源特性(CCFL or LED BLU)，再以視頻信號源搭配可程序電源供應器，中茂 Chroma 平面顯示器測試解決方案利用PC平臺的人性化的操作接口完成電壓、電流、功率的測試，并藉由軟硬件相互應用分析影像之亮點、壞點、顏色、分辨率等，結合自動化輸送帶的產線設計，以系統控管的方式提供數據分析之整合性網管功能。長沙艾克賽普儀器設備有限公司是中茂 Chroma 在華中地區授權代理商，可提供樣機和相關工程師上門演示溝通，以下是長沙艾克賽普儀器設備有限公司為您介紹中茂 Chroma 平面顯示器測試解決方案的系列產品,如果您有任何問題或者需要相關資料，請隨時聯系：0731-84284278轉801，郵箱：shawn.xiao@hncsw.net。
OLED測試系統

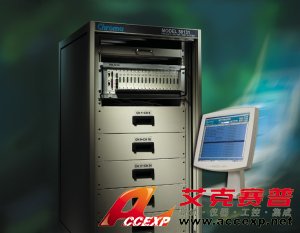

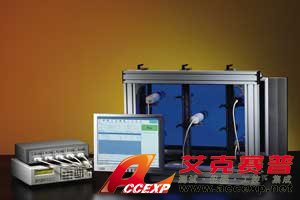

- Model 58131 OLED 壽命周期測試系統
- Test for electrical characteristic and brightness
- Thermoelectric cooler controller function (optional)
- Advance OLED life time prediction algorithm

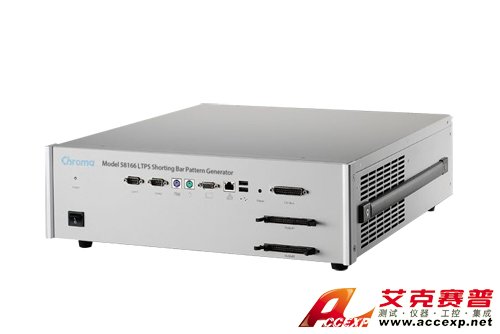

- Model 58166 OLED 面板 Shorting Bar 圖形產生器
- Large size OLED pattern generator
- Flexible waveform editor
- Auto discharge function
- Model 58167 LTPS 面板 Shorting Bar 圖形產生器
- Pattern generator for E-paper or LTPS panels.
- 36 channels output
- Auto discharge function
液晶模組自動測試系統

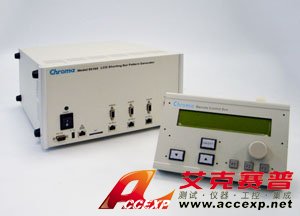

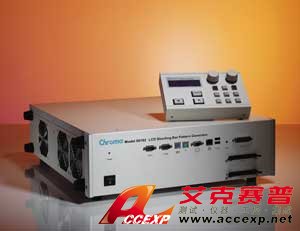

- Model 58162 LCD Shorting Bar 圖形產生器
- Flexible waveform editor
- PC-based platform
- High slew rate
- Integration with TEC or AOI function (optional)
- Model 58168 LCD Shorting Bar 圖形產生器
- Flexible waveform editor
- High slew rate
- Available for 4 operators in the same time.
- Low cost

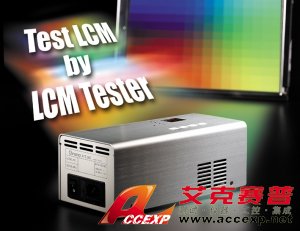

- Model 27011 LCM測試器
- Cost-effective LVDS Tester.
- LVDS 2ch up to 162MHz
- TTL (Optional) signals output
- 12V / 5V output for Vbl
- 12V / 5V / 3.3V output for Vdd

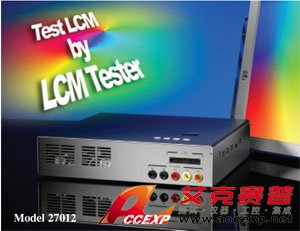

- Model 27012 LCM 測試器
- Portable LVDS Tester.
- LVDS 2ch up to 162MHz
- TTL (Optional) signals output
- 24V / 12V / 5V output for Vbl
- 12V / 5V / 3.3V output for Vdd

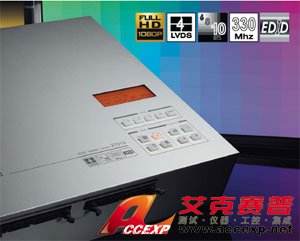

- Model 27013 LCM 測試器
- Portable LVDS Tester.
- LVDS 4ch up to 330MHz
- Vdd output 3.3~13V / 3.5A programmable
- Vbl by pass outside DC source
- EDID Read / Write / Compare
- Model 29133/29135 液晶模組自動測試系統
- LCM Automatic Test System (ATS).
- LVDS 2ch up to 270MHz (29135)
- 3 channel internal DC Power source
- Power protection OVP/OCP/UVP/UCP
- In-line process control and data collection

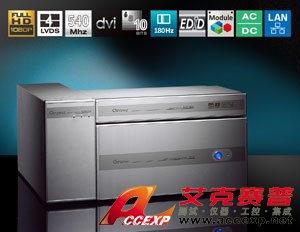

- Model 2916 液晶模塊自動測試系統
- LCM Automatic Test System (ATS).
- LVDS 4ch up to 540MHz
- 8 channel DC Power source module
- Power protection OVP/OCP/UVP/UCP
- In-line process control and data collection
- Model 2917 液晶模塊自動測試系統
- LCM Automatic Test System (ATS).
- LVDS 8ch up to 1.08GHz
- 8 channel DC Power source module
- Power protection OVP/OCP/UVP/UCP
- In-line process control and data collection

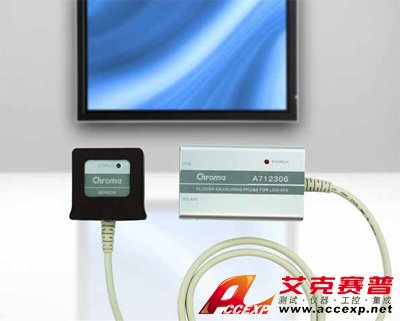

- Model A712306 液晶模組自動測試系統用閃爍量測探頭
- Able to integrate with LCM ATS for LCM auto flicker adjustment
- Capable of integrating Chroma 29XX Series LCM Auto Test System
- Support FMA and FLVL flicker measurement mode
液晶模組老化測試系統

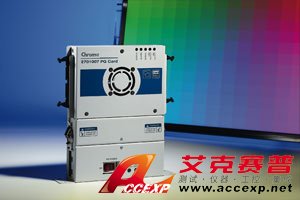

- Model 27010 series 液晶模塊信號產生卡
- Pattern Generator Card for LCM Burn-in system.
- LVDS 4ch up to 330MHz
- Power OCP protection
- Timing / Pattern Auto / Manual Run
- Cost-effective

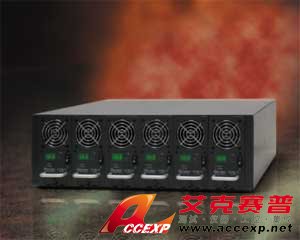

- Model 67300 series 直流電源供應器(LCM老化測試應用)
- Modular DC Power Supply for LCM Burn-in system.
- High Power Density (464mW / cm3 )
- Remote Sense, 1V Line Loss Compensation
- Remote RS-485 Interface Control
- Cost-effective
電氣安規分析儀
- Model 19032/19032-P 電氣安規綜合測試儀
- 全功能電氣安規分析儀
- 五合一安規綜合測試(交流耐壓/直流耐壓/絕緣電阻/接地電阻/動態泄漏電流)
- 500VA 輸出
- 接地連接(40A)
- 符合各項法規的人體模擬電路
- Open / Short Check偵測(OSC)
- GFI人體保護電路
- 動態泄漏電流掃描裝置
自動測試系統
- Model 7660 顯示器多探頭自動測試系統
- 采用非接觸式量測設計，配備符合 CIE 1931及CIE1976 UCS配色函數之感應器，可精確量測顯示器面板之輝度與色度均勻度。
