PSV-500-B掃描式激光測振儀
名稱：振動測試儀
品牌：
型號：

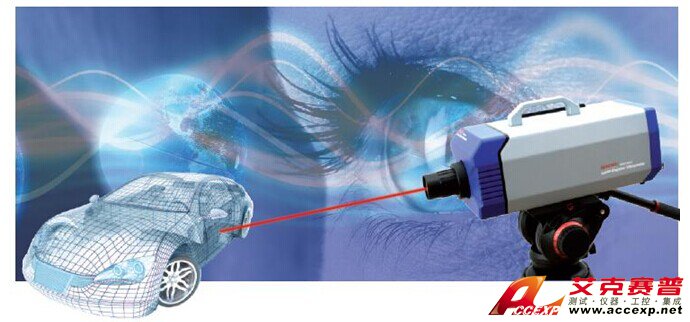

簡介：PSV-500是全場掃描式激光測振儀的第五代產品，是全球第一臺全數字式掃描激光測振儀。可在距目標0.125m～100m距離上測試，一次掃描完成幾個厘米器件到數十米結構的模態測量，測量點數可多達數十萬點。用戶無需建模，可在實物視頻圖像上快速直...
申請服務
- 產品介紹
PSV-500是全場掃描式激光測振儀的第五代產品，是全球第一臺全數字式掃描激光測振儀。可在距目標0.125m～100m距離上測試，一次掃描完成幾個厘米器件到數十米結構的模態測量，測量點數可多達數十萬點。用戶無需建模，可在實物視頻圖像上快速直接完成測量網格布置，并以每秒30點以上速度掃描，具有極高的工作效率！
| 序列 | 數量 | 描述 |
| 1 | PSV-500-B Scanning Vibrometer Acoustic | |
| 掃描式激光測振儀 | ||
| 主要聲頻范圍模態測量 | ||
| Scanning Laser Vibrometer for the non-contact and full-field measurement of deflection shapes in acoustic and general purpose applications. | ||
| Comprising the following components: | ||
| 由以下組成 | ||
| 1 | 1 | MON-TFTM TFT Monitor 24吋液晶顯示器 |
| Premium-brand high-resolution TFT Monitor. High viewing angle for a convenient working environment. 61 cm (24 inch), 16:10 aspect ratio. | ||
| 2 | 1 | PSV-F-500 Front-End B standard B型前端 |
| 采用DV-01解碼器，100mm/s 到10m/s 7個檔位 | ||
| 頻率范圍：DC-50KHz， 24bit | ||
| Electronics for decoding the high frequency signals from the interferometer. Connects to the scanning head and to the reference signals, SYNC, trigger and gate for measurement control. | ||
| Comprises a digital wide bandwidth decoder DV-01 featuring 7 ranges. | ||
| - Velocity range 100 mm/s - 10 m/s | ||
| - Bandwidth: 50 kHz (range dependent), 24 bit | ||
| - Max. velocity: 10m/s (range dependent) | ||
| Integrated data acquisition and optional signal generator. | ||
| Output: fully digital transmission of data via a VibroLink ethernet connection to the Data Management System (DMS). | ||
| Size : 19", 2HE | ||
| 3 | 1 | Chassis Type of Electronic Unit |
| Rackmount for Integration in 19" Racks 19寸標準機箱 | ||
| The Chassis is equipped with 2 handles on the front panel as well as additional flanges for mounting in 19" racks | ||
| 4 | 1 | PSV-C-510 Umbilical Cable10m 主電纜 |
| 5 | 1 | PSV-I-500 Vibrometer Scan Heads 主激光掃描頭 |
| comprises a highly sensitive miniaturized interferometer with integrated transmitting and receiving optics, the laser source(Helium-Neon-Laser 633nm, < 1mW output power, laser class 2), x-y scanning mirrors with digitally controlled galvo drives | ||
| - scan angle HxV 50° x 40° | ||
| - HD video camera featuring 16x optical zoom; field of view 55° x 32° | ||
| - closest measurement distance: 125 mm | ||
| - integrated connector for pan/tilt head control and for a compensation sensor | ||
| 6 | 1 | Internal Scanner Control 內部掃描控制 |
| 7 | 1 | No. of Reference Channels 1個參考通道 |
| Data acquisition for reference sensors (e.g. accelerometers, force transducers). Featuring IEPE (ICP) power supply. | ||
| - Connector: BNC at front panel | ||
| - Bandwidth 50kHz, 24 bit, | ||
| - Transmission via VibroLink to DMS | ||
| 8 | 1 | PSV-W-500 Data Management System 數據管理系統 |
| 19" industrial PC featuring Quad-Core CPU, 8 GByte RAM, 1 TB HDD, DVD recorder, Gbit-LAN, graphics board with dual DVI output, wireless optical mouse and keyboard. | ||
| 含高性能工控機一臺,8G內存,1T硬盤,DVD(可寫),網卡 | ||
| 9 | 1 | Windows 7 Ultimate 64bit OEM Windows 7操作系統 |
| 10 | 1 | License for B Version 軟件使用許可 |
| Data acquisition in time (scanning optional) and frequency domain, digital filters, signal averaging and real-time integration & differentiation in time and frequency domain. | ||
| Advanced Peak Hold function with signal enhancement for drop-out reduction. Zoom into Area Display function provides an additional digital zoom for easy scan point definition with highest precision. The Zoom into Area Display function is available for the Acquisition Mode as well as in Presentation Mode. | ||
| Extensive data analysis software package, provides complex spectral analysis according to well established industrial standards with H1, H2, FRF, phase and coherence functions displayed in Acquisition Mode (for single points) and Presentation Mode (for all scanned points). | ||
| The results of a scanning measurement are shown as pseudo-colors, isolines and wire mesh displays. 3D animation with overlaid video image and saving as AVI file of operating deflection shapes. A convenient file browser allows easy access to complete projects, measurement files and macros. Together with the signal processor PSV-S-SigPro post processing of data can be performed by drag and drop. | ||
| Scanning software allows up to 256 x 256 scan points per object; 6400 FFT lines for each channel. The entire spectrum (magnitude and phase) is stored at every point during scan. | ||
| Including an advanced point definition for arbitrary definition of measurement points and individual object properties: grid type (polar, hexagonal, rectangular), grid density and rotation, object rotation; poly-line objects; advanced edit mode for polygon | ||
| Includes all necessary drivers for computer hardware. | ||
| 包括掃描控制,數據獲取與分析功能 | ||
| 掃描控制包括: | ||
| 視頻圖像設置,變焦及聚焦 | ||
| 激光手動及自動聚焦 | ||
| 激光掃描 | ||
| 解碼器設置 | ||
| 數據獲取包括: | ||
| 數據時域(選配件)或頻域獲取記錄,數字濾波,信號平均,實時積分或微分 | ||
| 信號增強模式,用于減小光學丟失噪聲 | ||
| 數據分析功能包括: | ||
| 在目標圖像上顯示任意頻率下的振型 | ||
| 任意點的頻譜 | ||
| 傳遞函數,實部,虛部,相位等 | ||
| 可用二維,三維或等高線顯示 | ||
| 結果可保存為圖片或動畫片 | ||
| 可輸出ASCII或UFF格式 | ||
| 11 | 1 | PSV-S-FFT 6400 Resolution FFT 支持6400線FFT |
| 6400 FFT lines for all acquisition channels | ||
| 12 | 1 | Waveform Generator 信號波形發生器 |
| 13 | 1 | Noise Identification 噪聲監聽 |
| PSV-S-Audio AudioScan | ||
| 14 | 1 | PSV-S-ExpUFF Export filter 通用數據格式輸出 |
| Transforms scanning data into Universal File Format (UFF) data file format. Supports ME Scope, LMS, SDRC (MTS), Star Modal and other modal analysis packages also UNIX based packages. | ||
| 15 | 1 | PSV-S-VBEng Basic Engine VB工具 |
| SAX Basic Engine and Polytec File Access | ||
| Includes SAX Basic Engine: Visual Basic for Applications (VBA)® compatible programming interface and PolyFileAccess (PFA). | ||
| PFA enables retrieval of Polytec data via external applications supporting Microsoft’s Component Object Model (COM),e.g. Visual Basic, Matlab, LMS Test.Lab, VSI Rotate. Supports *.pvd; *.svd file formats including User Defined Data Sets (UDDS). | ||
| For MS Windows based applications only! | ||
| 16 | 1 | PSV-S-SM-B Software Maintenance 一年軟件免費維護與升級 |
| 17 | 1 | A-VIB-HEAD Headphones 耳機 |
| High-end closed headphones (with internal limiter 99dB for ear protection). 3.5 and 6.3 mm TSR jack. | ||
| 18 | 1 | VIB-A-T02 Tripod 三腳架 |
| 19 | 1 | PSV-A-535 Storage Case for Scanning Head 光學頭保存箱 |
| 二、選配件（升級） | ||
| 20 | 1 | Option PSF-F-500 Front-End B Enhanced 前端升級為增強型 |
| 解碼器升級為DV-02，10個檔位 10mm/s-10m/s | ||
| Electronics for decoding the high frequency signals from the interferometer. Connects to the scanning head and to the reference signals, SYNC, trigger and gate for measurement control. | ||
| Comprises a digital wide bandwidth decoder DV-02 featuring 10 ranges. | ||
| - Velocity range 10 mm/s - 10 m/s | ||
| - Bandwidth: 50 kHz, 24 bit | ||
| - Max. velocity: 10m/s (range dependent) | ||
| Integrated data acquisition and optional signal generator. | ||
| Output: fully digital transmission of data via a VibroLink ethernet connection to the Data Management System (DMS). | ||
| Size : 19", 2HE | ||
| 21 | 1 | PSV-F-500 Front-End B High Resolution 前端升級為高分辨增強型 |
| 解碼器升級為DV-03，13個檔位 1mm/s-10m/s | ||
| Electronics for decoding the high frequency signals from the interferometer. Connects to the scanning head and to the reference signals, SYNC, trigger and gate for measurement control. | ||
| Comprises a digital wide bandwidth decoder DV-03 featuring 13 ranges. | ||
| - Velocity range 1 mm/s - 10 m/s | ||
| - Bandwidth: 50 kHz (range dependent), 24 bit | ||
| - Max. velocity: 10m/s (range dependent) | ||
| Integrated data acquisition and optional signal generator. | ||
| Output: fully digital transmission of data via a VibroLink ethernet connection to the Data Management System (DMS). | ||
| Size : 19", 2HE | ||
| 22 | PSV-S-APS APS Professional 專業布點 | |
| Software module for generating complex measurement grids. Features various basic geometries like polygons, hexagons, circles and arbitrary points. Further functions: grouping, point density, coarsening, refining, manipulation of edge points, etc. Supporting the focus memory function of the scanning sensor head. | ||
| 具有任意改變某區域掃描密度,任意增加掃描點的功能,激光自動聚焦 | ||
| 23 | 1 | PSV-S-HRScn High Resolution Scan 高密度掃描 |
| Software extension to allow a high-resolution 512 x 512 (or higher) point density across the viewing area (full screen). | ||
| 支持全屏上的512X512點掃描 | ||
| 24 | 1 | PSV-S-FaScn Fast Scan 快速定頻掃描 |
| Fast scan routine for single frequency vibration measurements | ||
| 25 | 1 | PSV-S-FFT1128 High Resolution FFT 支持12800線FFT |
| Extension of the FFT to 12800 FFT lines for all acquisition channels | ||
| 26 | 1 | PSV-S-Gateln Gate Input Software Control 門輸入功能 |
| Enables external control for start and stop of a measurement by a TTL signal, e.g. from the Acoustic Gate Unit PSV-A-430. | ||
| 27 | 1 | PSV-S-SigPro Post-processing of data 數據后處理工具 |
| The Polytec Signal Processor is the user interface to the PolyMath library included in the PSV software. Easy-to-use spreadsheet for post processing of scan data. Processed area data sets can be re-exported into the original file for animation. Stored data (*.psd or *.svd) and live data can be used for processing (from version 9.0 onwards). | ||
| 28 | 1 | No. of Signal Generator Channels 信號發生器通道一個 |
| Channels Signal Generator: 1 | ||
| Integrated arbitraty signal generator | ||
| - Connector: BNC at front panel | ||
| 選配件（B,H,M） | ||
| 29 | 1 | PSV-S-TDD Time domain data 時域模塊 |
| 掃描過程中各點振動用時域信號記錄 | ||
| 30 | 1 | PSV-S-FFTEXT Extension to min. 204,800 FFT lines FFT線數升級 |
| Extended number of FFT lines. Requires PSV-S-FFT128 software option installed. | ||
| Possible settings are: | ||
| 25,600 lines | ||
| 51,200 lines | ||
| 102,400 lines | ||
| 204,800 lines | ||
| 409,600 lines | ||
| 819,200 lines | ||
| The available number of FFT lines depends on the active channels and the A/D settings of the acquisition system. With 8-channels active: max. 51,200 lines | ||
| 31 | 1 | PSV-G-500 Distance Sensor 輪廓掃描儀 |
| for coordinate measurements via the scanning mirrors. | ||
| Reproducibility typically +/- 1.5 mm | ||
| High dynamic range to cope with surface reflectivity changes without additional filtering or surface preparation. PSV-G-500 is integrated into the PSV-I-500 scanning head. | ||
| 32 | 1 | PSV-A-525 Protective Window 保護鏡 |
| 33 | 1 | PSV-A-HNEBF Helium Neon Block Filter 濾光片 |
| Filter for the scanning head camera for improving laser beam visibility on highly reflective surfaces and for measurements of small components. | ||
| 34 | 1 | PSV-S-TRIA VideoTriangulation 1D 激光耦合優化 |
| Software option for PSVsoft (version 8.8 or higher) on PSV-1D systems. VideoTriangulation is based on image processing allowing for a automatic alignment of the laser spot with the grid points show in the video image. |
