Agilent N4391A Optical Modulation Analyzer
名稱：其他儀器與工具
品牌：
型號：
簡介：The Optical Modulation Analyzer offers comprehensive characterization of amplitude and phase modulated optical signals f...
申請服務
- 產品介紹
The Optical Modulation Analyzer offers comprehensive characterization of amplitude and phase modulated optical signals for 40/100G transmission systems and advanced research for terabit transmission.
N4391A Optical Modulation Analyzer
主要特性與技術指標
•Up to 32 GHz true analog bandwidth
•Up to 60 Gbaud symbol rate
•Up to 240 Gbit/s analysis capability for DP-(D)QPSK
•Analysis span up to 62.5 GHz
•Optical analysis wavelength range 1528 nm to 1630 nm
•Specified typical system noise floor 1.8% rms EVM
The Optical Modulation Analyzer provides:
•Standalone software to extend your analysis capabilities offline
•Wide-bandwidth polarization-diverse coherent optical receiver technology with real-time detection
•Novel signal processing algorithms combined with Agilent 89600 vector signal analysis software
•Seemless integration of Agilent's high-speed real-time data acquisition unit, the Infiniium 90000 X-Series oscilloscope
Benefits
•Highest confidence in test results through specified and easily verifiable system performance
•Most sophisticated preprocessing algorithms with highest flexibility through novel polarization alignment and Kalman filter based phase tracking technology
•Debug the most challenging errors with tools, proven by thousands of RF engineers
Features
•Available as stand alone software package (starting July 1st) (NEW !)
•Generic APSK and PSK decoder (NEW !)
•Modification of calibration data for IQ hybrid test (NEW !)
•Color coded and digital persistence display tools (NEW!)
•User configurable ODFM decoder (NEW!)
•Easy to use SCPI based remote control (NEW!)
•Up to 20 free configurable displays (NEW!)
•CD, PMD measurement and compensation
•Integration of your Matlab compiler in data processing flow
•Light version fully supporting 100G @ 32Gbaud
•Support of triggered loop measurements
•User selectable loop gain of phase and polarization tracking
•Polarization alignment algorithm independent of modulation format

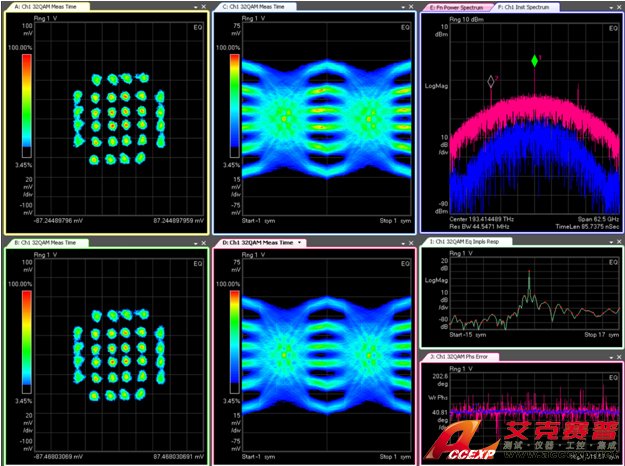

•Optical constellation diagram
•Optical spectrum analysis
•Error vector magnitude analysis tools
•Real counting BER
•Choice of more than 30 modulation formats
•Supports non-Agilent Data Acquisition
選件與附件
N4391A-110 Optical modulation analyzer with 4 channel receiver and analysis software
N4391A-210 Internal Local Oscillator
N4391A-220 Internal Local Oscillator and External Local Oscillator Input and Local Oscillator Out
N4391A-300 Digital Signal Analyzer (DSA91304A) with 20M Memory
N4391A-301 Digital Signal Analyzer (DSA91304A) with 100M Memory
N4391A-302 Digital Signal Analyzer (DSA91304A) with 1G Memory
N4391A-320 Infiniium Oscilloscope 20 GHz 80 GSa/s 2Ch, 20Ms/Ch Memory (1x DSOX92004A)
N4391A-321 Infiniium Oscilloscope 25 GHz 80 GSa/s 2Ch, 20Ms/Ch Memory (1x DSOX92504A)
N4391A-322 Infiniium Oscilloscope 32 GHz 80 GSa/s 2Ch, 20Ms/Ch Memory (1x DSOX93204A)
N4391A-323 Infiniium Oscilloscope L Version 30 GHz 80 GSa/s 2Ch, 20Ms/Ch Memory (1x DSO93004L)
N4391A-325 Infiniium Oscilloscope 20 GHz 80 GSa/s 4Ch, 20Ms/Ch Memory (2x DSOX92004A)
N4391A-326 Infiniium Oscilloscope 25 GHz 80 GSa/s 4Ch, 20Ms/Ch Memory (2x DSOX92504A)
N4391A-327 Infiniium Oscilloscope 32 GHz 80 GSa/s 4Ch, 20Ms/Ch Memory (2x DSOX93204A)
N4391A-328 Infiniium Oscilloscope L Version 30 GHz 80 GSa/s 4Ch, 20Ms/Ch Memory (2x DSO93004L)
N4391A-420 Custom - OFDM (orthogonal frequency-division multiplexing) Analysis License
N4391A-500 C band iTLA internal Local Oscillator
N4391A-501 L band iTLA internal Local Oscillator
N4391A-510 Fast tunable C and L Band Local Oscillator
N4391A-CONF01 Light consists of hardware options 110, 210, 500 limited to 4x22 GHz
N4391A-CONF11 Upgrade of existing LIGHT Version to full featured SW Version
N4391A-M00 Integration of Agilent 90000 oscilloscope (up to 4x13 GHz)
N4391A-M01 Integration of Agilent 90000-X oscilloscope (up to 4x16 or 2x32 GHz)
N4391A-M02 Integration of two Agilent 90000-X oscilloscopes (up to 4x32 GHz)
N4391A-M03 Integration of Tektronix 72004B series oscilloscope
N4391A-RK1 Rack Mount Kit for N4391A Single Oscilloscope System
N4391A-RK2 Rack Mount Kit for N4391A Dual Oscilloscope System
保修、校準和維修
PS-S20 Startup assistance
PS-S20-01 Recommended Startup assistance
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-5C Return to Agilent Warranty - 5 years
