Agilent 81180A 4.2 GSa/s 任意波形發生器
名稱：信號發生器
品牌：
型號：
簡介：High andwidth: 1 GHz modulation bandwidth / channel, 2 GHz I/Q modulation bandwidth and 1.5 GHz carrier frequency Reliab...
申請服務
- 產品介紹
High andwidth: 1 GHz modulation bandwidth / channel, 2 GHz I/Q modulation bandwidth and 1.5 GHz carrier frequency
•Reliable and repeatable measurements through best dynamic range and low harmonic distortion. Markers don't reduce DAC resolution.
•2 Vpp into 50 for many test cases and devices
•1, 2 or 4 channels. Combine 2 channels phase coherent or use them as two independent instruments in a single box. Two instruments can be synchronized to form a 4-channel system
•3 software selectable amplifiers optimized for different applications requiring different signal characteristics.
•Advanced sequencing for best usage of 64 MSa memory for real-world signals.
•Dynamic Sequence control lets your application control the waveform – in real time.
•10 pre-defined waveforms speed up your measurements
主要特性與技術指標 •10 MSa/s – 4.2 GSa/s, 12 bit Arbitrary Waveform and Function Generator
•2 GHz IQ modulation bandwidth
•1 or 2 channels (coupled and phase coherent / uncoupled)
•8-bit external sequence / segment control
•Up to 64 MSa memory
•Advanced sequencing capabilities
•2 markers with adjustable width and levels, markers do not reduce DAC resolution
Waveform Creation and Editing

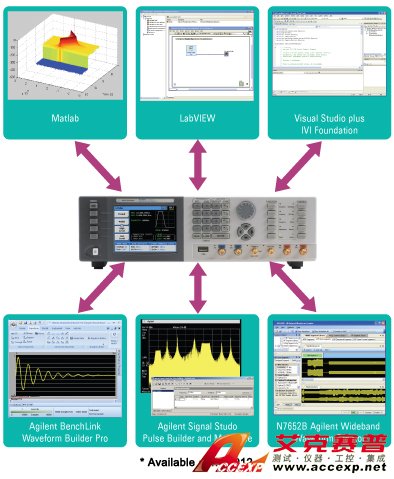

•Get advanced signal creation/editing capability without tedious programming with 33503A BenchLink Waveform Builder Pro Software.
Applications
•Wireless standards with > 1 GHz modulation BW (WiHD,WiGig, Bluetooth® 2.0)
•RF environment simulation up to 1.5 GHz (e.g. DVB-T/H, T-DMB)
•UWB up to 2 GHz modulation BW
•Software Defined Radio
•Satellite
•Radar
•General purpose arbitrary waveform generator and function generator
•Education
